For Developers: How to use Locker open

You can generate universal links for your users by making API calls to Harbor’s endpoints from your server.

Creating a Dropoff Link

Step 1: Get Access Token

Request an access token. | If you are using the API docs to test this out, you will need to input your client and secret in the top right corner.

Step 2: Find Your Location

Determine the correct location using our location endpoints. | Useful endpoints: locations

Step 3: Choose Locker Type

Choose the appropriate locker type based on the required space. | Endpoint docs: locker types

Step 4: Generate Dropoff Link

Make a POST request to /v1/locker-open-request/dropoff-locker-request to generate a dropoff link. | Use the locationId and lockerTypeId obtained from the previous steps.

Required Parameters:

• requireLowLocker: Set to true if the user requires a low locker (e.g., for accessibility).

• returnUrl: The URL to redirect the user after completing the locker interaction. Example: “https://yourbrand.com/drop-off-success-page” Leave blank “” if you do not want a redirect.

• clientInfo: A custom identifier (example: a user ID or transaction ID) that will be echoed back in webhook events. Leave blank “” if you don’t need an identifier.

• payload: A custom JSON object containing additional metadata for your internal use. Leave blank {} if not needed.

Dropoff API documentation

Response includes:

• id: The locker open request ID

• locker_id

• linkToken: The URL token for the dropoff experience. This is the URL you will send to the customer

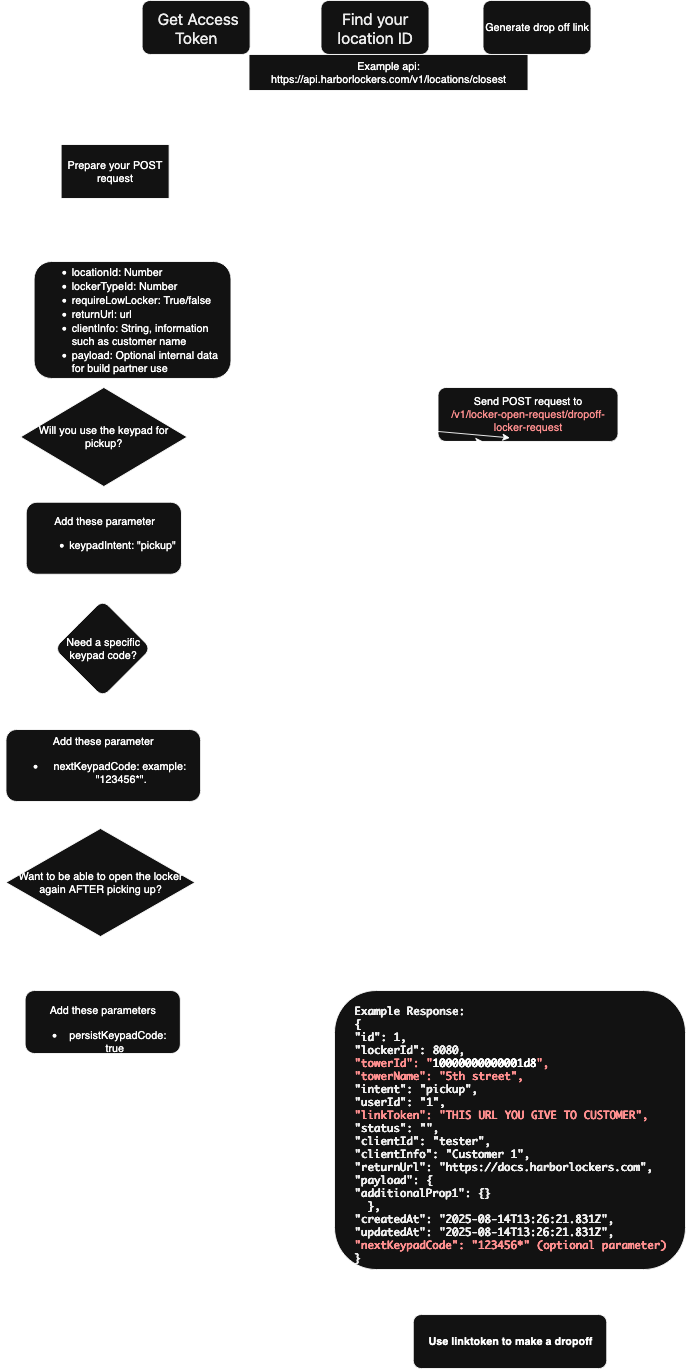

Locker Open Request for Dropoff Diagram

Here’s a diagram illustrating the process of creating the dropoff link.

Creating a Pickup Link

Step 1: Generate Pickup Link

Make a POST request to /v1/locker-open-request/pickup-locker-request to generate a pickup link.

Required Parameters:

• lockerId: The ID of the locker from which the user will retrieve an item.

• returnUrl: The URL to redirect the user after completing the pickup. Example: https://yourbrand.com/pickup-success-page Leave blank “” if you do not want a redirect.

• clientInfo: A custom identifier to receive in webhook events. Leave blank “” if you don’t need an identifier.

• payload: A custom JSON object to associate additional data with the transaction. Leave blank {} if not needed.

Pickup API documentation

Response format: Same as the dropoff link.

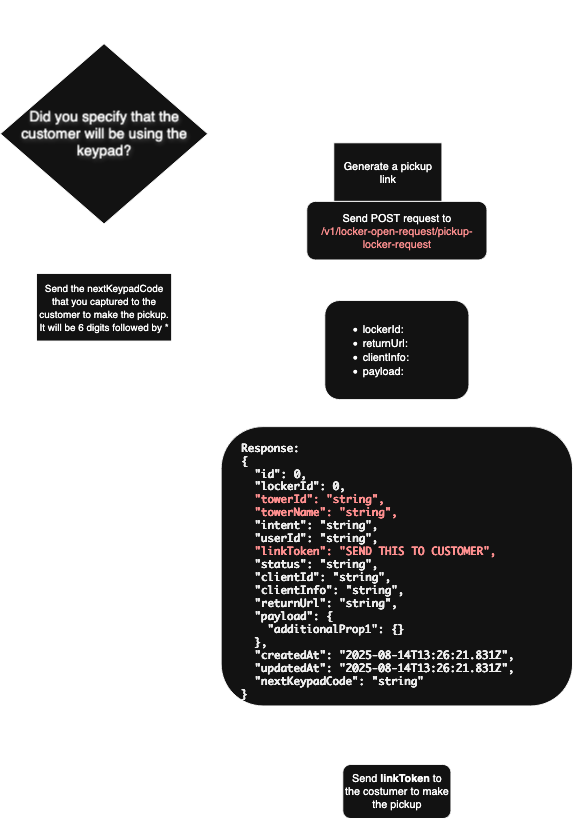

Locker Open Request for Pickup Diagram

Here’s a diagram illustrating the process of creating the pickup link.

Webhooks: Real-Time Notifications

Webhooks allow Harbor to notify your server when important events occur in real time.

Setup Requirements: - Your system must provide a publicly accessible HTTPS endpoint. Once our team registers the endpoint, you will begin receiving webhook events automatically

Webhook Event Examples

1. When a dropoff link is created:

2. When the user creates a token to open the locker:

   {
     "timestamp": "2025-04-01T13:12:57",
     "event": "LOCKER_OPERATION",
     "data": {
       "timestamp": "2025-04-01T16:12:57.521044+00:00",
       "locker_id": 9,
       "locker_status": "rented",
       "tower_id": "0000000000000001",
       "source": "LOCKER_TOKEN_CREATED",
       "reservation_id": null,
       "open_locker_token_id": 52,
       "keypad_code": null,
       "client_info": "Luis",
       "locker_open_request_id": null,
       "locker_open_request_payload": null
     }
   }


3. When the token is used to open the locker:

   {
     "timestamp": "2025-04-01T13:15:47",
     "event": "LOCKER_OPERATION",
     "data": {
       "timestamp": "2025-04-01T16:15:45+00:00",
       "locker_id": 9,
       "locker_status": "occupied",
       "tower_id": "0000000000000001",
       "source": "LOCKER_TOKEN_USED",
       "reservation_id": null,
       "open_locker_token_id": 52,
       "keypad_code": null,
       "client_info": "Luis",
       "locker_open_request_id": 56,
       "locker_open_request_payload": {
         "extra": "data",
         "test": 123
       }
     }
   }


Verifying Webhook Signatures (Optional)

Harbor and your system can share a secret used to verify the signatures of incoming webhook requests. This step is optional but recommended as an additional security measure.

Step 1: Extract the Signature

The webhook request will include a header named x-harbor-signature with this format: | t=1746022058,v1=c0aec4...,v2=... - t is the Unix timestamp - v1, v2, etc., are versioned signatures

Step 2: Generate Your Own Signature

Use an HMAC function to compute a signature using: - The shared secret between Harbor and your system - Request payload: concatenated string of timestamp and request payload delimited by comma, removing all space characters - Format: {timestamp},{payload} - Encoding method: hex

Step 3: Compare Signatures

Compare your computed signature to the ones provided in the x-harbor-signature header. The computed signature must match at least one of the provided signatures (e.g., v1) for the verification to pass.

Example Validator Functions:

PythonJavaScript

import re
import hmac
import hashlib

def is_signature_valid(
    x_harbor_signature: str, payload: str, shared_secret: str
) -> bool:
    """Determines if harbor signature is valid or not"""

    matches = dict(re.findall(r"(\w+)=([^,]+)", header))

    timestamp = matches.get("t")
    signatures = [v for k, v in matches.items() if k.startswith("v")]

    compact_payload = payload.replace(" ", "")
    signed_content = f"{timestamp},{compact_payload}"

    generated_signature = hmac.new(
        shared_secret.encode("utf-8"),
        signed_content.encode("utf-8"),
        hashlib.sha256,
    ).hexdigest()
    return generated_signature in signatures
